[Resolved]open ftp server port

redcattie · November 23, 2011, 1:51am

My box is windows 7 x64 and installed cis 2012 and filezilla ftp server.

I have set up as this.

at firewall - application network access control - ftp server port ( destination port 21) + port sets ( ftp server single port 21)

But I could not log in this ftp server with office pc installed cis 2012 also.

Please let me know what am I wrong.

Thanks in advance.

Radaghast · November 23, 2011, 2:40am

Depending on the configuration of your firewall global rules, you may need to open a port to allow inbound traffic, this is in addition to the firewall application rule for the filezilla process.

Go to - Firewall/Network Security Policy/Global rules

Add a rule:

Action - Allow
Protocol - TCP
Direction - In
Source Address - Use whatever is appropriate
Destination Address - Use ANY or the MAC address of the FTP server
Source Port - ANY
Destination Port - The port used by the FTP server (21)

redcattie · November 23, 2011, 3:01am

Radaghast/

Thanks for reply.

However still I could not connect ftp server with local pc.

wasgij6 · November 23, 2011, 3:20am

does your modem have a NAT? if it does you will have to port forward port 21 same with your router.

redcattie · November 23, 2011, 3:49am

wasgij6/

Yeah I opened all ports with DMZ function.

Radaghast · November 23, 2011, 4:03am

Have you checked the firewall logs for any related events? Perhaps you could post images of the rules you’ve created (application and global) along with any log entries.

redcattie · November 30, 2011, 5:05am

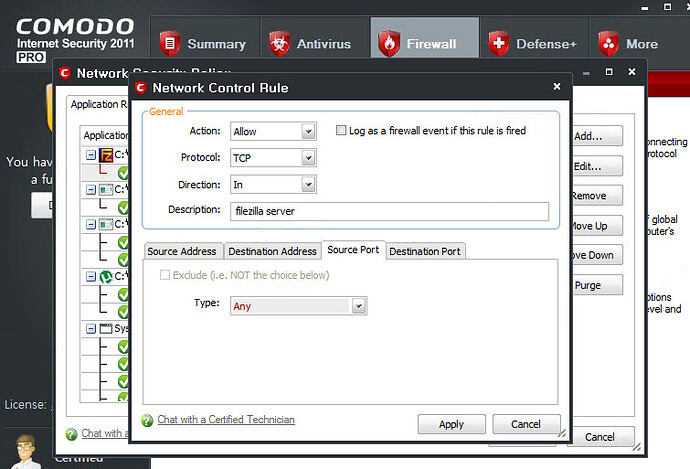

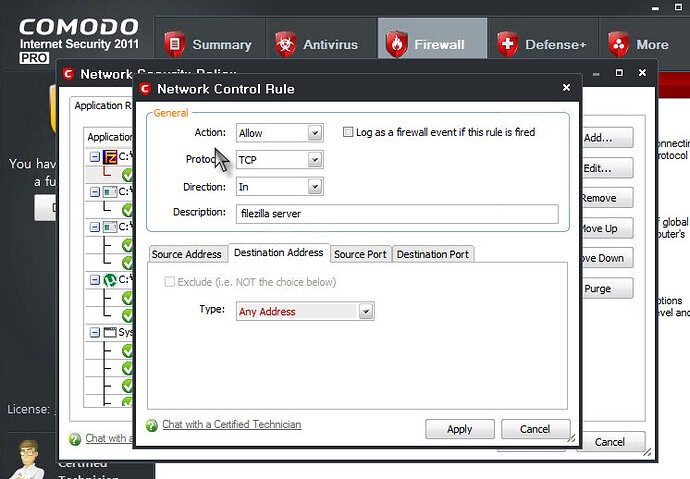

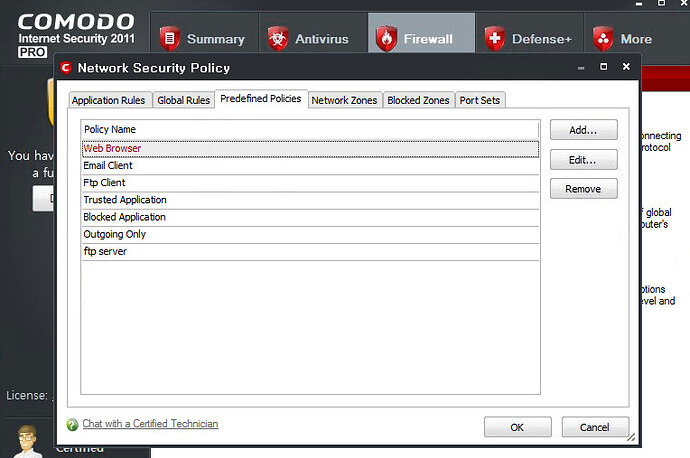

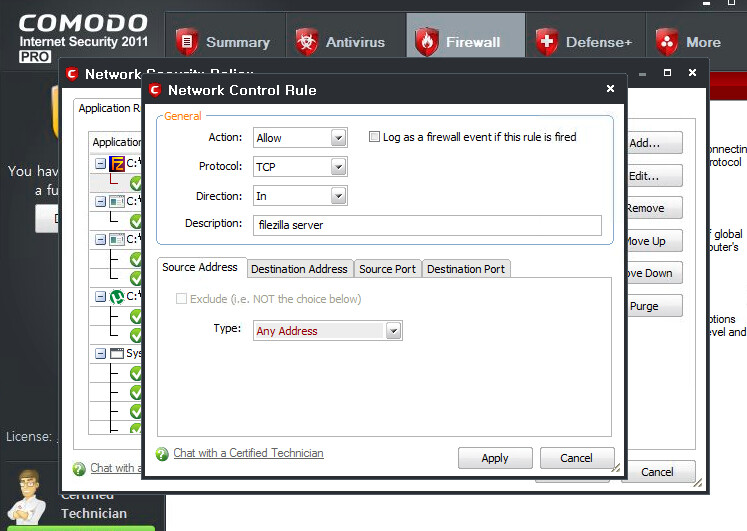

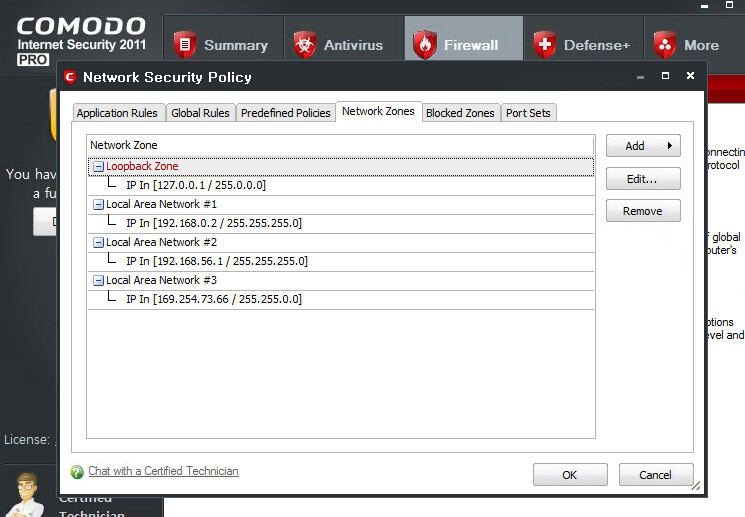

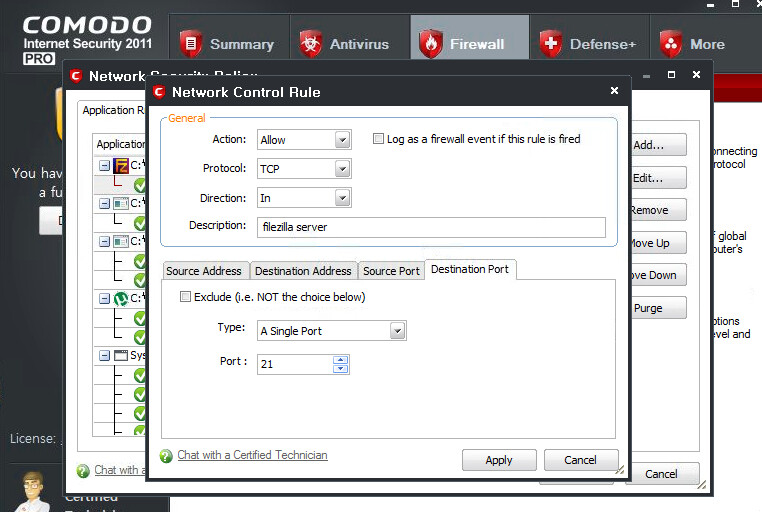

Photos are here.

Radaghast · November 30, 2011, 6:15am

Are you attempting to access the ftp server from another PC on the LAN, or from a remote location. If remote, you’ll need the Global rule I mentioned earlier. If local, please check the firewall logs and post anything related.

redcattie · December 1, 2011, 8:58am

Thanks! solved with the Global rule I.
